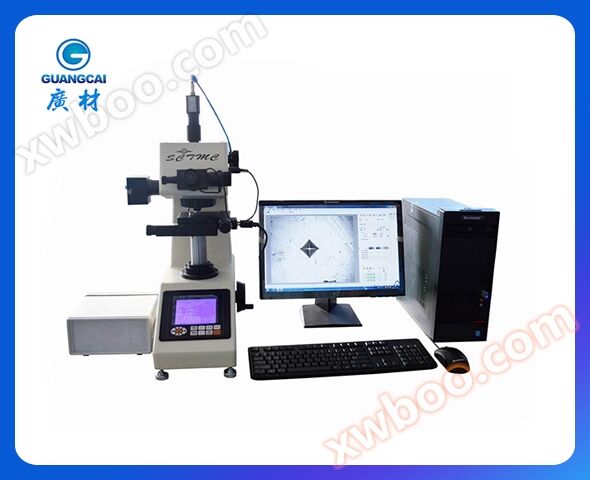

MHV-1000Z2.0 hardness tester

NegotiableUpdate on 10/12

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

Product Details

The MHV-1000Z/V2.0 automatic micro Vickers hardness tester integrates various latest professional technologies such as optical imaging, mechanical displacement, electronic control, digital imaging, image analysis, and computer processing. The control of the Vickers hardness tester and automatic stage is achieved through a computer host, and the hardness indentation is digitized and imaged on the computer screen. Then, through automatic reading, manual reading and other means, the microhardness, hardening layer depth, film thickness, two-point spacing, etc. of metal and some non-metallic materials, as well as various film layers and coatings, are accurately measured. It can also capture the surface morphology of metals and perform fixed magnification printing. This system breaks through the traditional hardness testing method and achieves semi-automatic, high-precision, and high repeatability hardness testing, making it an important equipment for material analysis.

Equipment parameters:

model		MHV-1000Z/V2.0
Experimental force	gf	10gf, 25gf, 50gf, 100gf, 200gf, 300gf, 500gf, 1000gf
	N	0.098N, 0.246N, 0.49N, 0.98N, 1.96N, 2.94N, 4.90N, 9.80N
Hardness testing range		1HV~2967HV
Test mode		HV/HK
Test force application method		Automatic (load/hold/unload)
Objective lens and indenter switching		Automatic switching
Convert ruler		HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HB
Data output		Built in printer Can generate WORD or EXCEL reports and hardness curve graphs
Hardness reading		The computer displays the indentation image and automatically measures it
Objective lens		10 x (for observation), 40 x (for measurement)
Eyepiece		10 x digital micrometer eyepiece
Total magnification factor		100× ， 400×
Resolution		0.0625μm
Guarantee time		0~60s
Light source		Halogen lamp light source
X-Y automatic test bench		Size: 100 × 100mm; Travel: 50 × 50mm; Resolution: 0.002mm
Maximum height of the sample		100mm
Distance from the center of the pressure head to the machine wall		98mm
Power supply		AC220V，50Hz
Execution standards		ISO 6507，ASTM E384，JIS Z2244，GB/T 4340.2
External dimensions		480 × 325 × 545mm, outer box size 600 × 360 × 800mm
Machine weight		Net weight 31kg, gross weight 44kg

Software functions:

System linkage: Through serial communication of the hardness tester, the system is linked with the hardness tester.

Pressure linkage: When the hardness tester test force is converted, the system senses the change in test force and displays it in real-time in the system.

Rotary tower linkage: The software controls the hardness tester to switch between the objective lens and the indenter, without the need for manual control of the hardness tester.

Loading linkage: The software controls the hardness tester to load, without the need for manual control of the hardness tester.

Measurement linkage: Software controls the turret of the hardness tester, loads and directly reads the Vickers hardness value.

Optical linkage: manual focusing.

Image acquisition: Real time display of hardness images, capable of storing and printing images.

Automatic measurement: Automatically identify the four vertices of the indentation, fast speed, accurate data, and multiple professional algorithms to apply to different indentations. Continuous testing, instant testing, and specified coordinate compression.

Automatic point finding: Take points near the four vertices of the indentation, and the system automatically finds the best vertex, greatly reducing human error.

Diagonal measurement: Point at the upper left and lower right corners of the indentation to read the hardness value.

Four point measurement: Take the four vertices of the indentation and read the hardness value.

Hardness conversion: According to national standards, various hardness values such as Brinell Rockwell Vickers Knoop are automatically converted and displayed in real-time.

Graphic report: Automatically record measurement data, generate hardness depth curves, save or print hardness depth curves and all indentation measurement values. Save or print the indentation image and the current indentation hardness value. All reports are saved as WORD documents.

Result statistics: Export the measurement results of multiple indentations in EXCEL data format, and automatically calculate the number of measurements, maximum and minimum hardness values, average value, variance, etc.

Linkage control: The system senses changes in test force, controls the hardness tester turret, loads and directly reads through serial communication.

Automatic displacement: equipped with high-precision X-Y automatic platform.

Automatic recognition: Leading indentation automatic recognition technology, reads D1/D2 and HV values within 0.3 seconds.

Stable performance: It can automatically read non mirror polishing, uneven lighting, and non center indentation.

Powerful features: manual reading, automatic reading, hardness conversion, depth hardness curve, indentation image, graphic and textual report functions.

Easy to use: calibrated through hardness blocks, in line with users' daily habits. After half a day of training, it can be used normally.

Automatic reading: With a unique automatic reading algorithm, it can automatically read multiple types of indentations with fast speed and high accuracy.

Good repeatability: The automatic reading has high repeatability, meeting the professional requirements of users.

Automatic scanning: capable of automatically scanning the edges and contours of the sample.

Software parameters:

1. Computer host: Brand machine (2G memory, 500g hard drive, 19 inch widescreen LCD screen)

2. Inkjet printer

3. Applicable operating systems: WIN XP, WIN7

4. Digital imaging system

High resolution: 1.3 million pixels (1280 × 1024)

High speed acquisition: 1280 × 1024 resolution: 25 frames per second;

High definition: Black and white images with better clarity;

Target size: 1/2 inch

5. X-Y automatic stage

Table size: 100 × 100 × 50 millimeters

Maximum travel: 50 × 50 millimeters

Minimum step distance: less than 2 microns

Mobile speed: adjustable;

Control methods: manual control, electric control, computer control;

6. X-Y stage computer control mode

Positioning and movement: The platform is directly moved to the software set position;

Fixed point movement: Select any point on the sample and move it below the pressure head;

Directional movement: Click the mouse to control the stage to move freely in eight directions, and the movement step distance can be set;

Arbitrary movement: Drag the mouse to move the stage in any direction, making it easy for users to browse the surface condition of the sample;

Variable speed movement: When the platform moves, there are two gears available (fast and slow), with selectable and adjustable speeds;

Other functions: various professional functions such as arbitrary setting of origin position, automatic reset, mechanical limit, etc., to meet various needs;

7. Measurement method

Automatic mode - automatic stage movement (X, Y direction)+automatic reading

Manual mode 1- automatic loading+manual eyepiece marking measurement

Manual mode 2- manual movement of the stage+manual focusing+automatic/manual measurement

8. Automatic reading/manual reading

Automatic reading time: The reading time for a single indentation is about 300 milliseconds;

Automatic measurement accuracy: 0.1 micrometers;

Automatic measurement repeatability: ± 0.8%

Manual reading: manual point taking, automatic point finding, 4-point measurement, 2-diagonal measurement;

9. Save/Output Results

Store/output measurement data and experimental parameters, including D1, D2, HV, X, Y, etc;

Store/output effective hardening layer depth curve report;

Store/output images;

Standard configuration:

name	Quantity	Name	Quantity
Instrument host	1 unit	10 x digital micrometer eyepiece	1 piece
Diamond micro Vickers indenter	1 piece	10 x, 40 x objective lens	1 each
Weights and weights	6 of them	Weight axis	1 piece
Electric Cross Test Stand	1 piece	Thin film clamping table	1 piece
Flat mouth clamping table	1 piece	Fine wire clamping table	1 piece
Horizontal adjustment screw	4 pieces	Level gauge	1 piece
Fuse 1A	2 of them	Halogen lamp 12V, 15~20W	1 piece
Power cord	1 piece	Screwdriver	2 of them
Standard hardness block 400~500 HV0.2	1 piece	Standard hardness block 700~800 HV1	1 piece
Dust cover	1 piece	Product Qualification Certificate	1 copy
Product manual	1 copy	Printer manual	1 copy
Brand computer (500GB hard drive, 2GB memory, 19 inch LCD screen)	1 unit	Inkjet printer	1 unit
CCD camera	1 set	1.5 times adapter	1 piece
USB encryption dongle	1 piece	Control dedicated connection line	1 piece
RS232 data connection cable	1 piece	Electric platform control box	1 piece
Measurement software	1 set
