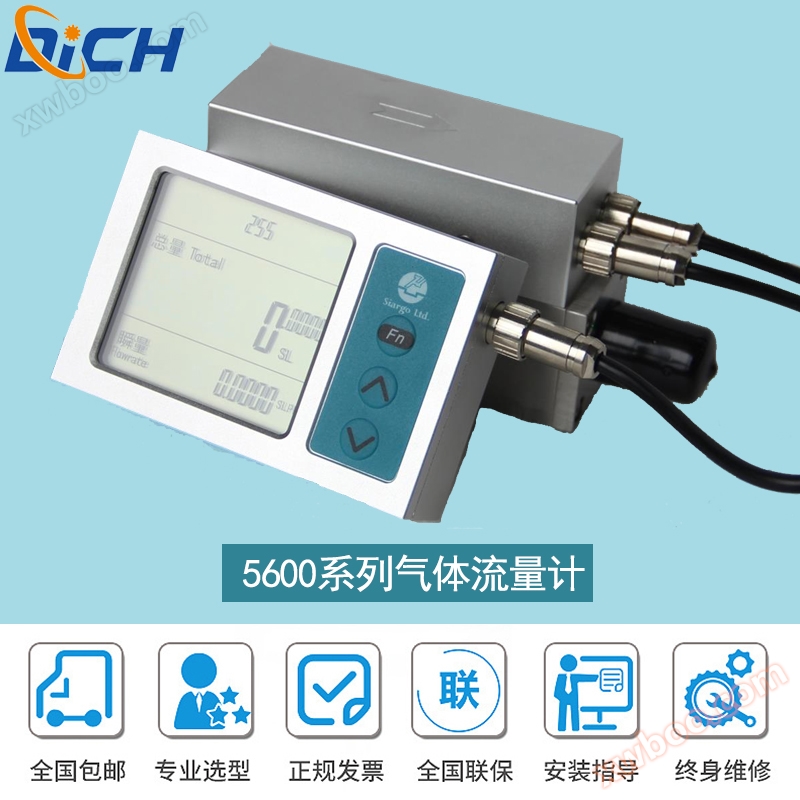

MF5600 series gas flowmeter

MF5600 series gas flowmeter Specially designed for applications that require separation of display and body. For example, small air separation systems in hospital oxygen supply systems. The standard industrial user interface (RS485/4~20mA) and user-defined alarm function of this flowmeter enable better remote or network monitoring. The existing products areMF5612andMF5619Can be measured separately0-300SLPMand0-800SLPMgas flow rate.

MF5600 series gas flowmeterApplication environment:

MF5600 seriesGas mass flowmeteryesA new instrument for measuring and controlling gas mass flow rateIt can be used for monitoring air, hydrocarbon gases, flammable gases, and flue gases in industrial sectors such as petroleum, chemical, steel, metallurgy, power, light industry, medicine, and environmental protection.
Characteristics：
High reliability, good repeatability, low measurement accuracy, high voltage loss
No moving parts Wide range ratio, fast response speed, no need for temperature and pressure compensation
MF5612 Gas QualityFlow meter application：
Measurement of gas mass flow rate in industrial pipelines Measurement of smoke velocity emitted from chimneys
• Measurement of flue gas flow rate in calcination furnace • Measurement of air flow rate during gas process
• Compressed air flow measurement • HalfguideGas flow measurement during chip manufacturing process
Gas flow measurement in sewage treatment Gas flow measurement in heating, ventilation, and air conditioning systems
• Measurement of gas flow rate in flux recovery system Measurement of combustion gas flow rate in combustion boilers
• Flow measurement of natural gas, torch gas, hydrogen and other gases
Measurement of carbon dioxide gas flow rate during beer production process
During the production process of cement, cigarettes, and glass factoriesGas flow measurement

Product Features:

- Split type displays can be installed in places far away from gas pipelines through specially designed connecting cables
- The flowmeter is equipped with RS485 communication module as standard, and optional 4-20mA standard current output and PULSE pulse output
-Smooth stainless steel tube body is beneficial for oxygen measurement
-Ultra large range facilitates precise monitoring of gas flow rate
-Built in security plugins make installation convenient

Technical Specifications:

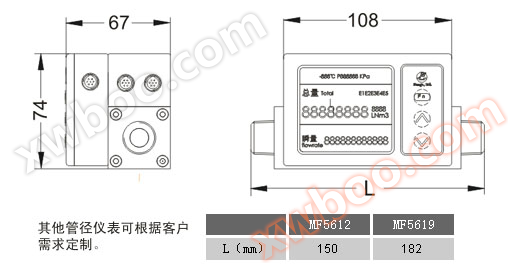

Mechanical dimensions:
