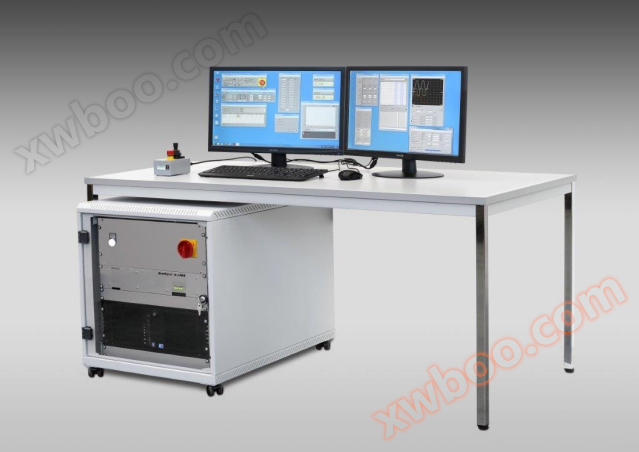

TIAB fully digital control system

The TIAB fully digital control system is developed by Lotus from the UK Cars' active suspension system research engineer founded in Banbury, UK

Since 1986Dedicated to the research and development of controllers since, untilFormally established in 2002

Early provision of simplicity to F1 racing and high-end sports car manufacturersController and software

Dedicated to providing digital servo controllers and control software to the testing field

Having a two-story office building and a testing plant

Typical users:

F1 racing team, Red Bull;

Component suppliers,TRW；

Shock absorber testing manufacturer,Roehrig

The controller has been successfully used to control hydraulic actuators, servo electric cylinders, linear motors, etc

Developed numerous application software, such as multi degree of freedom control, iteration4Columns, shock absorbers, elastomers, etc

Simple and open design, very easy to install and configure

Low maintenance, support, and development costsAnd running

No restrictive file formats, interfaces, or protocols, compatible with any third-party product

Pursuing product quality, paying attention to every detail

Actively and candidly communicate with users, emphasizing user satisfaction

passISO 9001-2008Certification, all products are executed in the UK andISOWaiting for standards

Capable of sensor and system calibration qualifications, and able to perform dynamic force calibration

Application software can be customized according to user needs

We have partners and users in countries such as the United States, Germany, the United Kingdom, and China

The highest cost-effectiveness in the industry

Modular hardware

Concise board design

Real time controller, up to 25kHz

Flexible closed-loop configuration,6KHz closed-loop rate

Can control hydraulic cylinders, electric cylinders, linear motors, etc

supportLabVIEWandCSecondary development can be done directlyWrite DSP variables

Rich application software, such as shock absorber testing module, four column testing module, iterative software, elastic body testing, multi degree of freedom vibration table, car seat belt testing, multi-channel coordinated loading software

In the future trends of mechanical testing represented by high dynamics, high speed, multi degree of freedom vibration, and hardware in the loop, there are alreadyMany application cases

processor module

Analog output module,2Channel design, capable of accommodating8 yuan

Analog input module,4Channel design, capable of accommodating4 pieces

Digital input/output module, 4-channel design, capable of

24VDC power supply and conversion module

Watchdog circuit

Connecting cables and adapter cards

24VDC power supply

Sensors and other connectors

USBConnect computer

CAN、 EtherCAT optional

Pay 4 yuan

Using TI's DSP, TMS320C5500 and TMS320C5400

Processing speed up to 25kHz

4-channel built-in function generator (400Hz)

Real time limit and safety protection monitoring

Event triggered data recording and corresponding actions, such as shutdown

No impact switching between three control modes

Pause and send notifications

System settings:

PIDFadjust

signal generator

Signal digital table

Digital Oscilloscope

Extreme detection and action

File playback and recording

Test settings

sensor calibration

Data View

Timer, counter, trigger data recording

Iterative softwareMIMIC

Four column testing softwareFOUR POSTER

Sequence testing

Elastic body testing

Shock absorber testing

Material Testing

Multi channel structure loading
