EXH series high-temperature and high-frequency fatigue extensometer (replacing 7650A/tested up to 80Hz)

Germany SANDNER PublicCharacteristics of the extensometer:

• High precision

• After long-term development and verification • Internationally renowned

Modular design can measure elongation at any time

• High standards

Special designs beyond standard designs

• High cost-effectiveness

Application scope of SANDNER extensometer testing:

• Static and dynamic

• High and low temperature environment

• High and low humidity environment

• Coordinate measurement: axial, lateral, bidirectional, three-axis, torsional, internal, external

• Liquid and gas environment

Neutral and active media

• High pressure and vacuum environment

• UV, IR， Gamma and other radioactive substances

SANDNER is a supplier of extension gauges for Zwick Roell in Germany and IST testing machines in the United States

EXH series high-temperature extensometer

SANDNER can provide extensometers for testing in environments with high temperatures up to 1200 ° C.

Used for tensile, compressive, fatigue (up to 80Hz), and fracture testing. You can also choose a 1800 ° high temperature rod.

This series of extensometers can also be used in conjunction with radiation furnaces and three sided heating high-temperature furnaces.

The measurement of data is carried out through two ceramic rods on an extensometer, with the ends of the two ceramic rods installed at a 90 ° angle onto the specimen. Ceramic rods can be repaired using specialized grinding discs. The extensometer is equipped with a special spring that allows it to connect to a high-temperature furnace or frame.

Therefore, there will be no measurement error. This spring comes with two rolling nuts, which can quickly and firmly install the ceramic rod onto the test sample. If the material of the tested sample is hard, the ceramic rod may slip or fall off. Therefore, we also provide a special pressing device to prevent it from slipping.

At the same time, the extensometer can also adjust the clamping center point and insulation protection function.

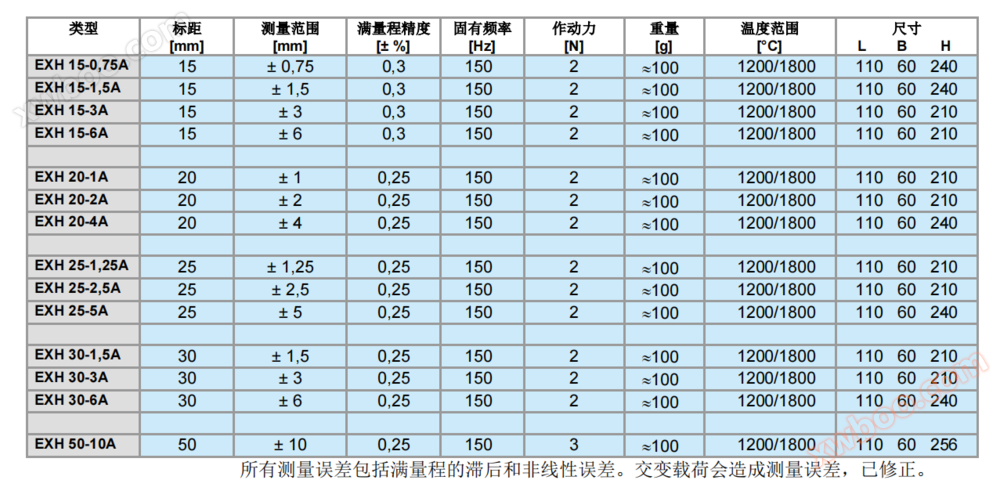

All measurement errors include full-scale hysteresis and nonlinear errors. Alternating loads can cause measurement errors, which have been corrected.We can customize extensometers with non-standard gauge lengths of 10mm/12mm and other gauge lengths.

Standard Supply List:

The extensometer comes with a 500mm wire and plug

Two ceramic rods with installation and compensating springs.

• Thermal insulation protection board with press screws and rolled nuts.

Two extensometer connectors.

Calibration certificate
