Electro hydraulic servo oil source system

NegotiableUpdate on 03/26

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

The composition and characteristics of the DKYY series servo hydraulic oil source adopt an integrated structural design. Its main components include: hydraulic pump, motor, accumulator, oil tank, various valves and valve group modules, as well as oil source control cabinet, pressure proportional control system, and temperature control system

Product Details

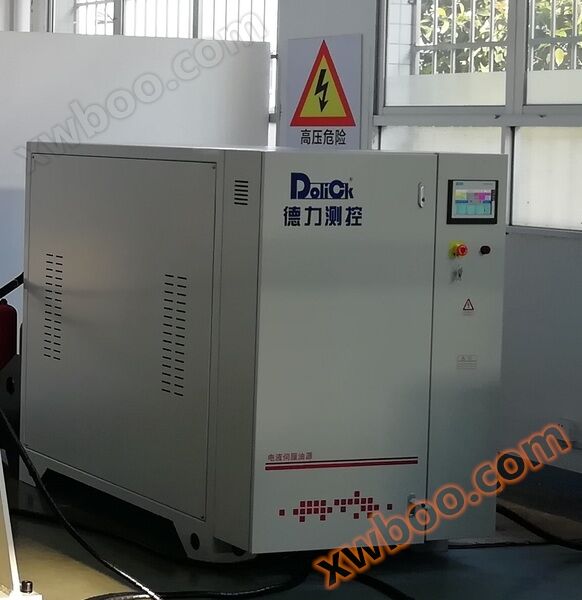

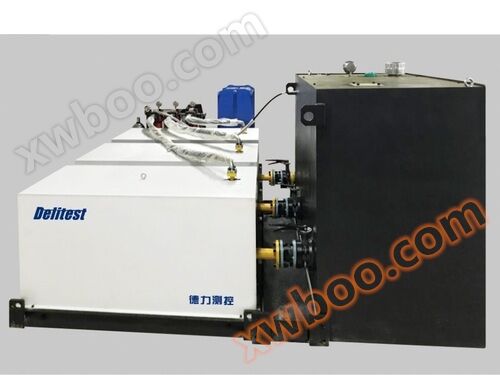

Composition and characteristics of servo oil source

The DKYY series servo hydraulic oil source adopts an integrated structural design, and its main components include:
Hydraulic pump, motor, accumulator, oil tank, various valves and valve group modules, as well as oil source control cabinet, pressure proportional control system and temperature control system.

DKYYHydraulic servo oil source



DKYYThe series of hydraulic servo oil sources are used to meet the needs of hydraulic servo system operation, including:

DKYY1000- Ordinary hydraulic oil source
DKYY2000- Proportional valve controlled hydraulic oil source

DKYYBasic functions and characteristics of hydraulic servo oil source:
·Manual/Remote Control Selection for Motor Start, Low Liquid Level and Overtemperature Automatic Shutdown
·Low voltage high voltage soft start of electronic control
·Automatic overpressure protection
·Automatic control and warning of oil temperature
·Oil filter blockage alarm

Selection of servo oil source products

DKYY2000 [1]/0040/21- [A] Performance parameters: flow rate of 40 liters per minute, pressure of 21 MPa
DKYY2000 [1]/0100/21- [A] Performance parameters: flow rate of 100 liters per minute, pressure of 21 MPa
DKYY2000 [1]/0200/21- [A] Performance parameters: flow rate of 200 liters per minute, pressure of 21 MPa
DKYY2000 [1]/0600/21- [A] Performance parameters: flow rate of 600 liters per minute, pressure of 21MPa
DKYY2000 [1]/0800/21- [A] Performance parameters: flow rate of 800 liters per minute, pressure of 21 MPa
DKYY2000 [1]/1000/21- [A] Performance parameters: flow rate of 1000 liters per minute, pressure of 21MPa
DKYY2000 [1]/1200/21- [A] Performance parameters: flow rate of 1200 liters per minute, pressure of 21MPa

Explanation: Option [1] is a constant pressure variable displacement pump; [A] The pressure of the high-pressure servo oil source is 31.5MPa
